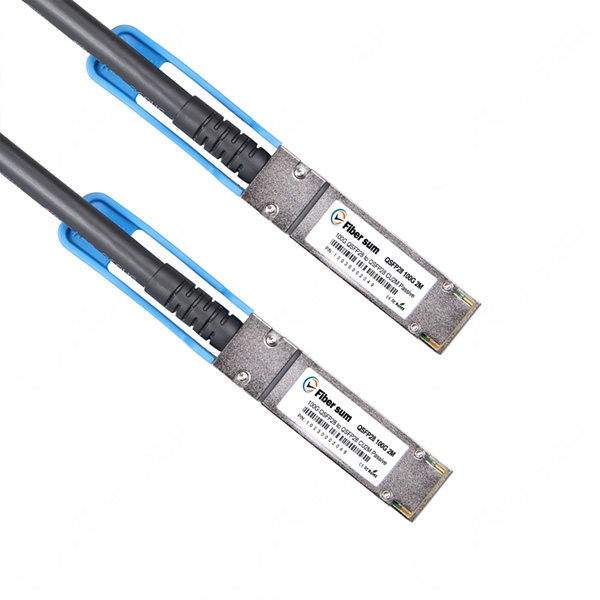

Dell 470-ABQG Compatible 100G-DAC-CU QSFP28 to QSFP28 Passive 2M (6.6ft) 30AWG Direct Attach Cables

• Product Overview

Due to the popularity of 100 Gigabit Ethernet, there is a high demand for pluggable optics standards. Fibersum offers both DAC (direct attached cables) and AOC (active optical cables). Our optical cables support 100G Ethernet, and they are designed according to the QSFP28 standard.

100G QSFP28 Direct Attach Cables (DAC) portfolio offers a wide range of passive and active copper cables with different diameters, lengths. It is the perfect solution to linked switches, servers and storage inside racks, Cost-effective copper solution, Lowest total system power solution, Lowest total system EMI solution, Optimized design for Signal Integrity

100G QSFP28 to QSFP28 CU Passive Copper Twinax Cable assembly products, The product can well satisfy the next generation 100G switches, servers, routers and other products of application requirements.QSFP28 cable adopts optimized design to reduce crosstalk and insertion loss, excellent signal integrity, fully conforms to the next generation 100G Ethernet and Infiniband EDR standards.

QSFP28 conforms to the Small Form Factor SFF8665
4-Channel Full-Duplex Passive Copper Cable Transceiver, Support data rates : 25.78Gb/s (per channel), Maximum aggregate data rate: 100Gb/s (4 x 25.78Gb/s)
IEEE 802.3bj 100GEBASE-CR4
Low crosstalk, Power Supply :+3.3V
I2C based two-wire serial interface for EEPROM signature which can be customized
Operating Temperature: 0 to 70℃ (32 to 158℉)
Compatible to QSFP28 MSA
RoHS Compliant

100 Gigabit Ethernet
Fiber Channel over Ethernet
InfiniBand EDR
Data storage and communication industry Switch / router/ HBA
Enterprise network SAN
Data Center Network
