- Compatible Brand:Generic
- Compatible Part Number(s):QSFP-CX4-5M
- Vendor Name:Fibersum
- Vendor P/N(s):QSFP-CX4-DAC-5M
- Cables Type:40G QSFP+ Cables
- Cable Length:5M (16.4ft)
- Active or Passive:Passive
- Data Rate:40G-DAC-CX
- Connector Type:QSFP+ to CX4
- Speed:40GBase
- Media:Copper Twinax Cable
- Wire AWG:24AWG
- Temperature Range:0 to 70℃ (32 to 158℉)
- Product Dimension(H*W*D):1.5 in. x 14 in. x 14 in.
- Protocols:MSA Compliant

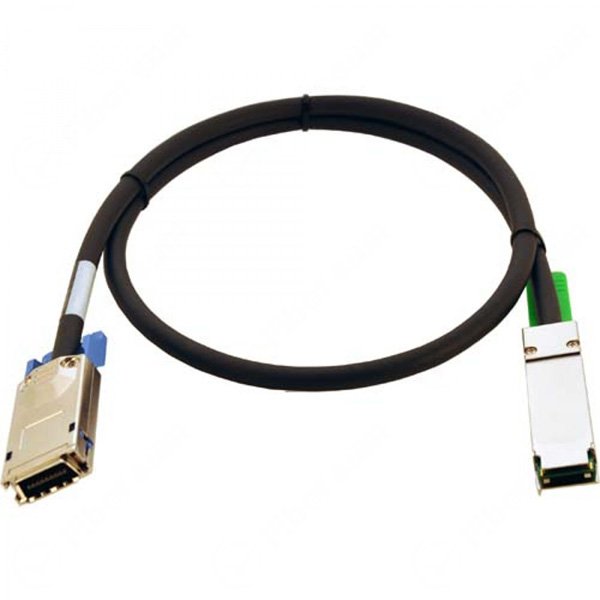

CAB-QSFP/CX4, QSFP to Cx4 cables have a QSFP connector and a Cx4 InfiniBand connector at the two sides of the cable respectively. The Quad Small Form-Factor Pluggable Plus (QSFP) interface provides a low-profile, high-bandwidth, low power-consumption interconnect solution. They are commonly used for DDR/ SDR InfiniBand applications.
QSFP to CX4/ 4x cables use cutting edge technology to provide an excellent hybrid cable solution for CX4/InfiniBand and QSFP rated switches, network adapters, and storage arrays. These cables have a QSFP connector on one end and a CX4 Connector on the opposite end. Each CX4-QSFP copper cable permits auto-negotiation between the two connected devices for optimal network throughput. Reaching data rates of up 5Gpbs per channel. Compatible with 4x Infiniband SDR/DDR and 10 GbE applications.
Connector B = CX4 (SFF-8470)
Conductor: Copper Passive
SFF-8470 connectors with side squeeze latch
High performance 8 pair wire construction
Low power consumption, Low cross-talk and pair-to-pair skew
Zinc die-cast QSFP connectors with pull-release latch
Supports 10-Gigabit Ethernet
Supports QSFP, 10GBASE-CX4 and SDR/DDR InfiniBand
Excellent EMI performance
Fully compliant to QSFP MSA
RoHS Compliant
0 to 70℃ (32 to 158℉) Temperature
