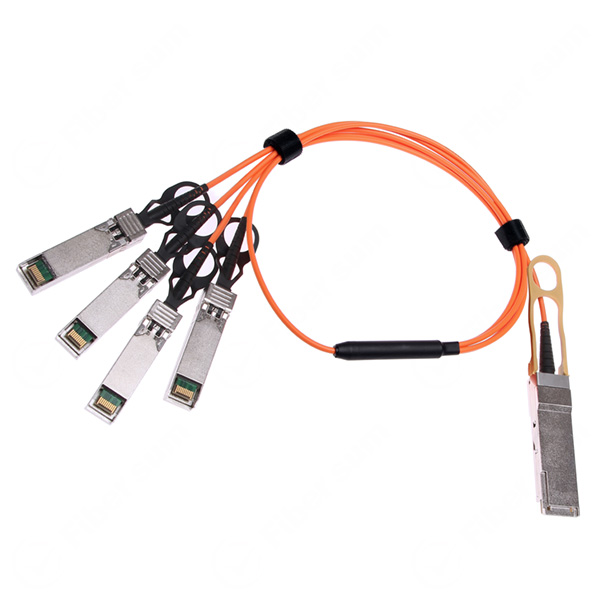

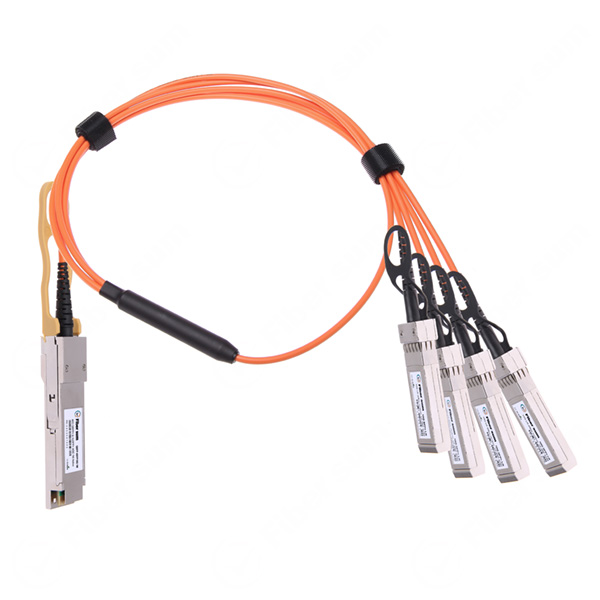

Juniper Networks QFX-QSFP-DACBO-1M-AOC Compatible 40G AOC QSFP+ to 4xSFP+ Active 1M (3.3ft) 850nm Active Optical Cables

• Product Overview

The QSFP-4SFP-AOC is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Active Optical Cable (AOC) to 4xSFP+ Active Optical Cable break-out solution. This Breakout cable is intended for 40G to 4x10G applications. The 40G QSFP+ to 4x 10G SFP+ AOC breakout active optical cables are designed for 40GBASE-SR4 to 4x 10GBASE-SR Ethernet links reach up to 100m (OM3) or 150m (OM4) over Multi-Mode Fiber (MMF).

This AOC is a high performance cable for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 40 Gbps aggregate andwidth. Each lane can operate at 10.3125 Gbps. These cables also support 4 x 10G InfiniBand QDR applications and are backwards compatible to the 4x5G IB DDR and 4x2.5G IB single IB SDR applications. This product is leveraged from Fibersum QSFP+ to QSFP+ Active Optical Cable product and SFP+ Active Optical Cable product. This AOC incorporates Fibersum ' proven integrated circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.

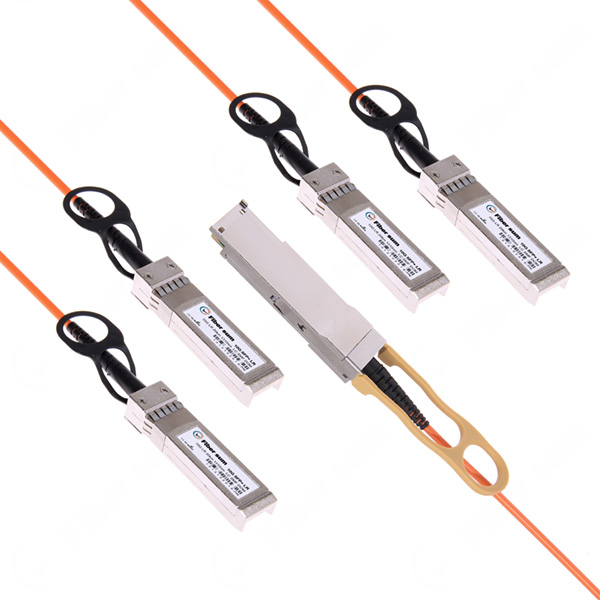

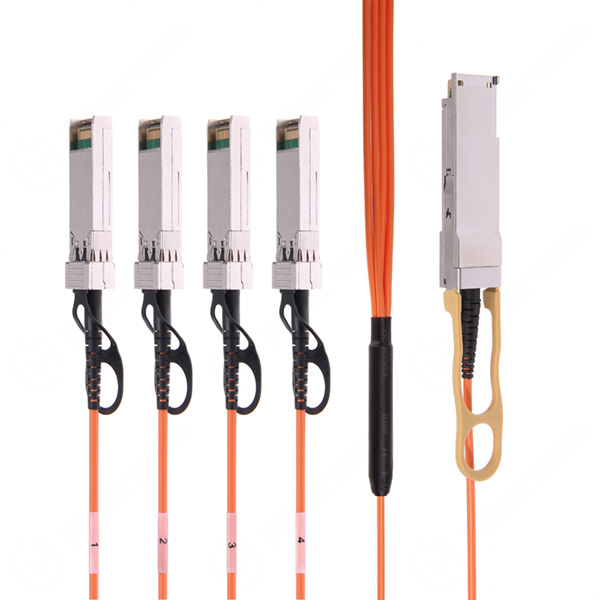

Hot-pluggable QSFP+ and 4x SFP+ form-factor connectors
Transmission data rate up to 10.3Gbit/s per channel
Connector 1: QSFP+ (SFF-8436)
Connector 2: 4 x SFP+ (SFF-8431)
Cable Type: Active Optical Cable (AOC) Cable
4x 850nm VCSEL transmitter and PIN photo-detector receiver
Length up to 100m over OM3 MMF
Management interface and digital diagnostic monitoring(DDM) through I2C
Support Rx output pre-emphasis
Operating case temperature range from 0 to 70℃ (32 to 158℉)
Compliant with QSFP+ MSA, IEEE 802.3ba 40GBASE-SR4 and IEEE 802.3ae 10GBASE-SR
3.3V power supply voltage
Low Power consumption < 1.5W (QSFP+), < 0.8W (per SFP+),1W on SFP+ ends
RoHS compliant (lead free)

40GbE and 10GbE break-out applications for Datacom switch and router connections
40G to 4x10G density applications for Datacom and Proprietary protocol applications
Datacenter
