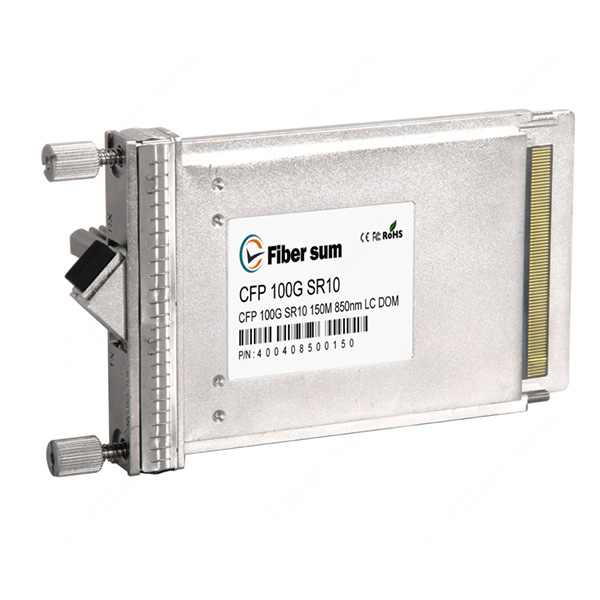

- Compatible Brand:Dell
- Compatible Number (s):CFP-100GBASE-SR10
- Vendor Name:Fibersum
- Vendor P/N(s):CFP-100G-SR10-85
- Form Type:100 Gigabit CFP
- Speed:100GBase-SR10
- Distance:150m
- Wavelength:850nm
- Connector:LC
- Media:MMF
- DDM/DOM:DOM
- Optical Components:DFB/PIN
- TX Power:-4.3~4.5dBm
- RX Power:-10.6~5.5dBm
- Product Dimension(H*W*D):7.75 in. x 5.25 in. x 1.25 in.
- Packaging:BOX Packaging
- Operating Temperature:0 to 70℃ (32 to 158℉)
- Protocols:MSA Compliant
CFP modules offer customers 100 Gigabit Ethernet connectivity options for data center networking, enterprise core aggregation. Link distances of 500m, 10km, 20km and 40km are supported. Fibersum offers SR10, LR4, ER4 CFP modules and converter adapters from CFP to QSFP28.
Compliant to the IEEE 802.3ba(100GBASE-SR10)Support interoperability with IEEE 802.3ae 10GBASE-SR modules of various form factors such as SFP+, XFP, X2
Compliant to the CFP MSA Specification
Up to 100m on OM3 and 150m on OM4 MMF
VCSEL array transmitter and PIN array receiver
Single 3.3V Power Supply and Power dissipation ≤ 8W
Operates at 10.3125Gbps per channel
0 to 70℃ (32 to 158℉) Temperature
