- Brand Compatible:
- Compatible Part Number(s):
- Vendor P/N(s):SFP10G-BX-32-80
- Speed:10GBase
- Transceiver Type:BX
- Wavelength:1550nm-TX/1490nm-RX
- Distance:80km (37.3 mi)
- Connector(Port Type):LC
- Media:SMF
- DDM/DOM:DOM
- TX Power:1~6dBm
- RX Power:< -20dBm
- Product Dimension(HxWxD):1.2 in. x 2.75 in. x 4.75 in.
- Optical Components:DFB/APD
- Vendor Name:Fibersum
- Operating Temperature:0 to 70℃ (32 to 158℉)

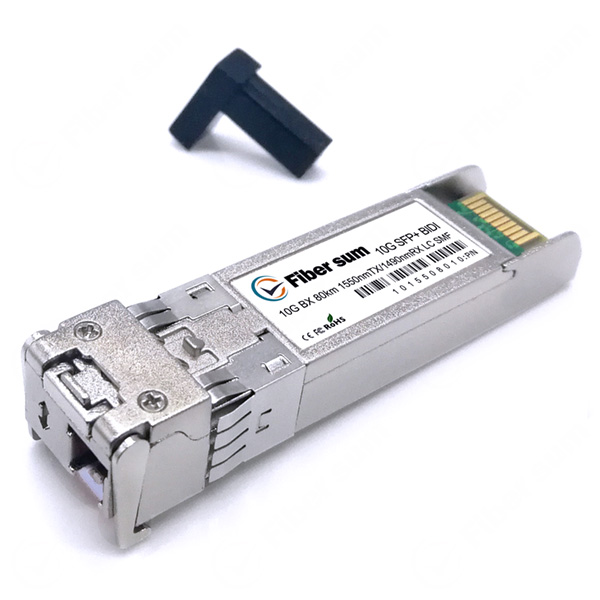

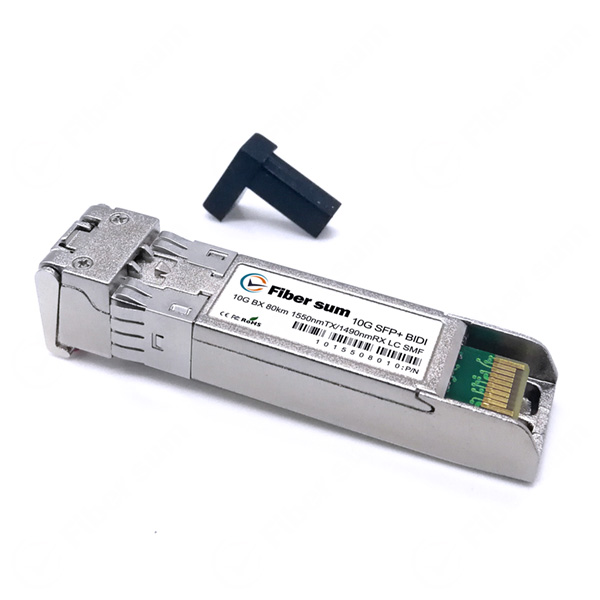

Single Fiber BiDirectional (BiDi) SFP+ transceivers use simplex single-mode fiber to double the bandwidth without the cost. These hot-swappable single fiber transceivers provide data rates of 10G and distance up to 160 kilometers. Designed for bi-directional 10G serial optical data communications such as IEEE 802.3ae and 10GBASE-BX.
Product Features
One Fiber Bi-Di SFP+ Optical Transceiver, Bidi WDM SFP+Up to 11.3 Gbps Bi-directional Data Links
SFF-8472 Digital Diagnostic Function
Bi-directional single LC Connector Interface
Single 3.3V Power supply
0 to 70℃ (32 to 158℉) Temperature
