- Compatible Brand:Juniper Networks
- Compatible Number (s):QDD-400G-LR4
- Vendor Name:Fibersum
- Vendor P/N(s):QSFP-400G-LR4-31-10
- Form Type:400 Gigabit QSFP-DD
- Speed:400GBASE-LR4
- Distance:10km
- Wavelength:1310nm
- Connector:Duplex LC
- Media:SMF
- DDM/DOM:DOM
- Optical Components:EML/PIN
- TX Power:-2.8~4.0dBm
- RX Power:<-9.1dBm
- Product Dimension(H*W*D):1.2 in. x 2.75 in. x 4.75 in.
- Packaging:BOX Packaging
- Operating Temperature:0 to 70℃ (32 to 158℉)
- Protocols:MSA Compliant

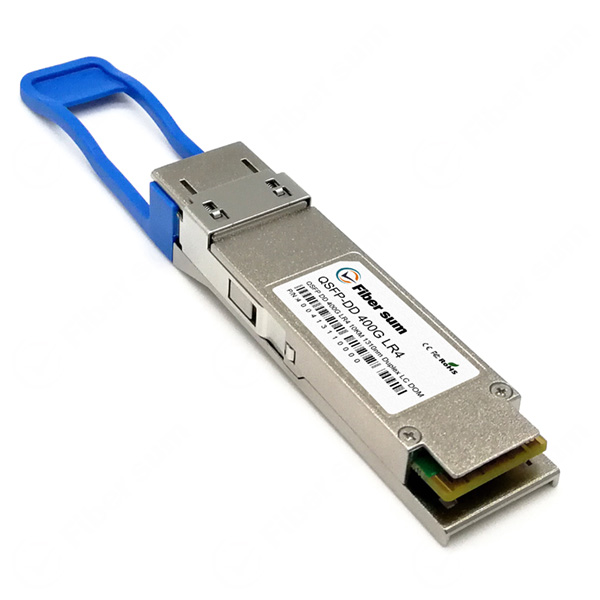

QSFP-DD LR4 4x100G Optical transceiver module are designed for use in 400 Gigabit links over 10km singlemode fiber. They are operating on CWDM4 wavelength, and are compliant with the QSFP-DD MSA. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP-DD MSA.
The 400G QSFP-DD LR4 transceiver supports connections of up to 10 kilometers over single-mode fiber and uses LC connectors. The wavelengths are 1296 to 1309nm.
This product was added to our catalog on Saturday 27 March, 2021.
