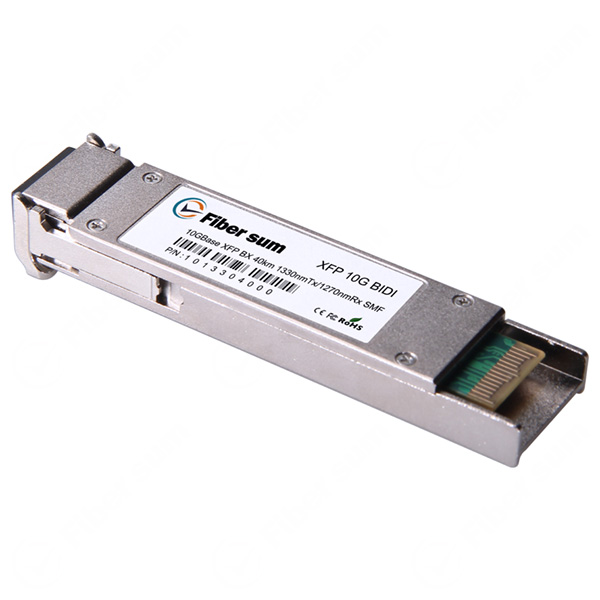

Cisco XFP10G-BX-D-40 Compatible 10GBase-BX 40km (24.8 mi) 1330nmTx/1270nmRx LC SMF DOM 10 Gigabit BIDI XFP Transceivers

• Product Overview

BID XFP transceivers are designed for bi-directional 10G serial optical data communications over singe fiber, also called WDM XFP, Bi-directional XFP, single fiber XFP. BIDI XFP transceiver modules are hot pluggable and low power consumption, designed for 10G Fiber Channel, 10G Ethernet, SONET OC-192, SDH STM-64, OTN G.709 applications over a single-strand Single Mode fiber.

The transceiver consists of two sections: The transmitter section uses a multiple quantum well 1330(1270) nm DFB laser and is a class 1 laser compliant according to International Safety Standard IEC 60825. The digital diagnostics functions are available via a 2-wire serial interface, XFP MSA package with Simplex LC connector. The transceiver modules are are RoHS-6 compliant and lead-free.

Supports 9.95Gb/s to 10.3Gb/s bit rates
Hot-pluggable XFP footprint
Maximum link length of 40km (24.8 mi) with SMF
1330nm DFB laser Transmitter and 1270nm Receiver
No reference clock required
Loop Back Support
+3.3V, +1.8V power supply
Power dissipation < 2W
Compatible with RoHS
Compliant to IEEE 802.3ae 10GBASE-BX
XFI Loopback Mode
Built-in digital diagnostic functions
0 to 70℃ (32 to 158℉) Temperature
