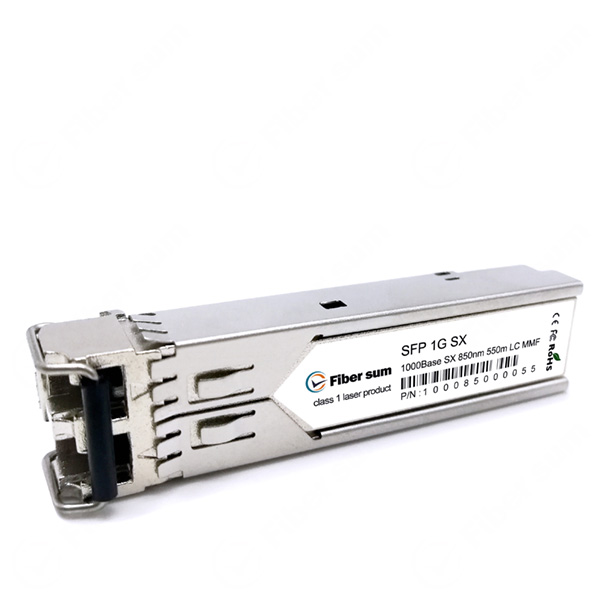

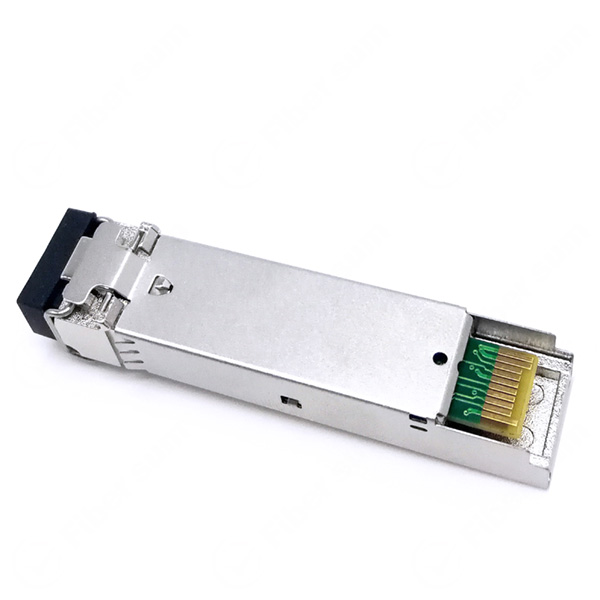

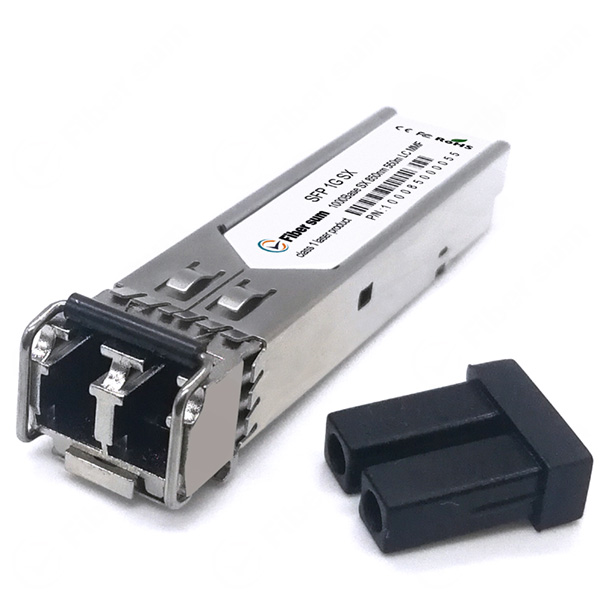

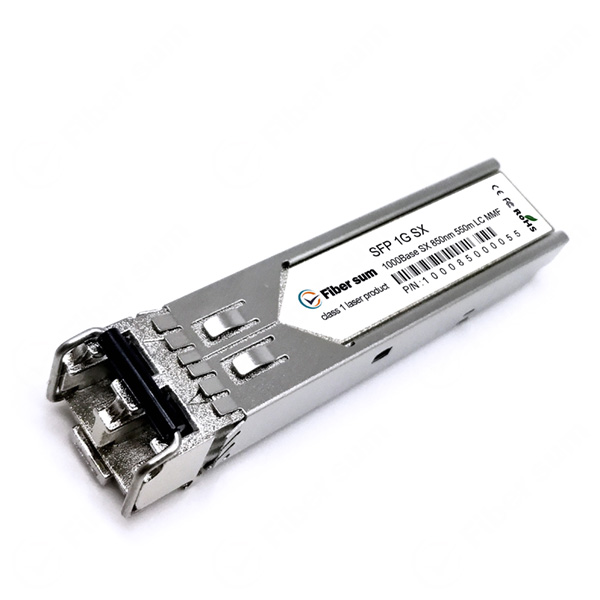

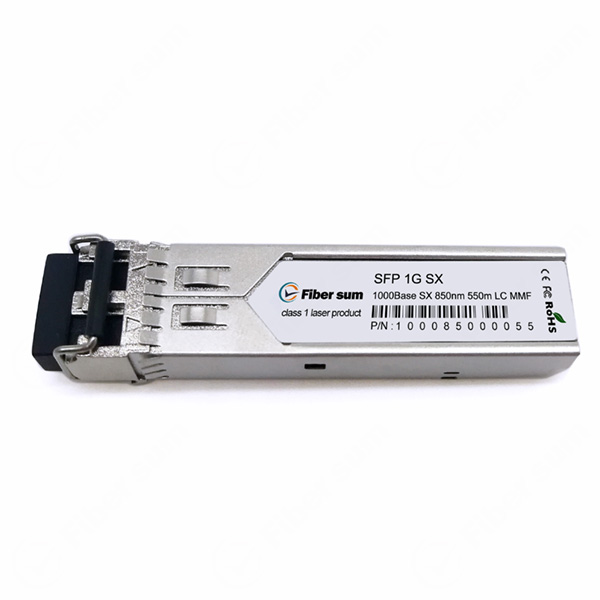

- Compatible Part Number(s):J4858B
- Compatible Brand:HPE
- Vendor P/N(s):SFP1G-SX-85
- Transceiver Type:1000Base SFP
- Speed:SX
- Wavelength:850nm
- Distance:150-550M
- Connector (Interface Type):LC
- Media:MMF
- DDM/DOM:DOM
- TX Power:-9.5~-3dBm
- RX Power:<-18dBm
- Optical Components:VCSEL/PIN
- Product Dimension(H*W*D):1.2 in. x 2.75 in. x 4.75 in.
- Vendor Name:Fibersum
- Operating Temperature:0 to 70℃ (32 to 158℉)
- Protocols:MSA Compliant
The small form-factor pluggable (SFP) is a compact, hot-pluggable transceiver used for both telecommunication and data communications applications
Operating data rate up to 1.25 Gbps
Distance up to 550m~120km
Single 3.3V Power supply and TTL Logic Interface
Hot Pluggable, Duplex LC Connector Interface
Compliant with MSA SFP Specification SFF-8472 and RoHS
Compliant with IEEE 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev 10.0
2-Wire Interface Digital Diagnostic Monitoring (SFF-8724)
Hot-swappable for SFP LC ports
5 year standard warranty/extended 2 year platinum OEM warrantyGigabit Ethernet Switches and Routers
Fiber Channel Switch
Other Optical Link
